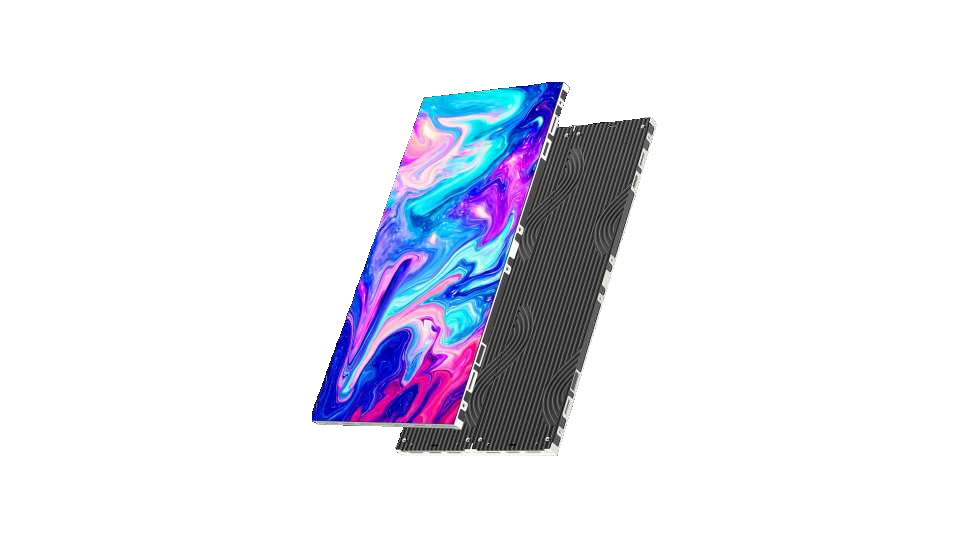

OL Series P3.9

3.9mm LED video display for indoor use

Ultra-thin indoor
LED display for modern spaces

The OL Series is a high-quality indoor LED screen designed for permanent indoor installations and is well suited for retail stores, corporate environments and public spaces. With its slim 33 mm design and flexible panel sizes, it offers a modern and clean visual solution for a wide range of indoor LED display applications.

Thanks to its GOB surface and Nationstar pixels, the screen delivers excellent colour quality, stable performance and enhanced resistance to moisture, dust and impact. The modular design with quick-lock connectors makes installation simple and enables creative LED screen layouts, including corners, columns and custom formats.

Available panel sizes:
1000 × 500 mm, 1000 × 250 mm, 750 × 250 mm, 500 × 250 mm

Functionality

High image quality

Up to 3,840 Hz refresh rate and 16-bit grayscale for smooth transitions and lifelike colors.

Ultra-thin profile

Only 33 mm deep, lightweight and easy to install, including LED modules and enclosed cabling.

Multiple installation options

Can be mounted on a wall for a sleek look, hung from the ceiling for open areas, or built freestanding.

Easy installation and service

Magnetic module connection for quick installation and easy service from the front and the back.

OL Series P3.9 Specifications

Optical

Pixel Pitch: 3.91mm
Type of LED: SMD1515
Pixel density: 65 536 px/m2
Pixel resolution: 256×128
Brightness: 800 nit
Contrast ratio: 10 000:1
Viewing angle: 160° H | 160° W
Refresh rate: 3 840 Hz
Material: Die-cast aluminum
Dimensions: 1000x500x33 mm
Weight: 10.5 kg
Service: Front
IP rating: IP31
Control unit: NovaStar
Receiving card: NovaStar
Data connection: EtherCON
Power supply: AC 100-240V 50/60 Hz
CCC, CE, ROHS, FCC, CB, TUV, IEC
2 year
