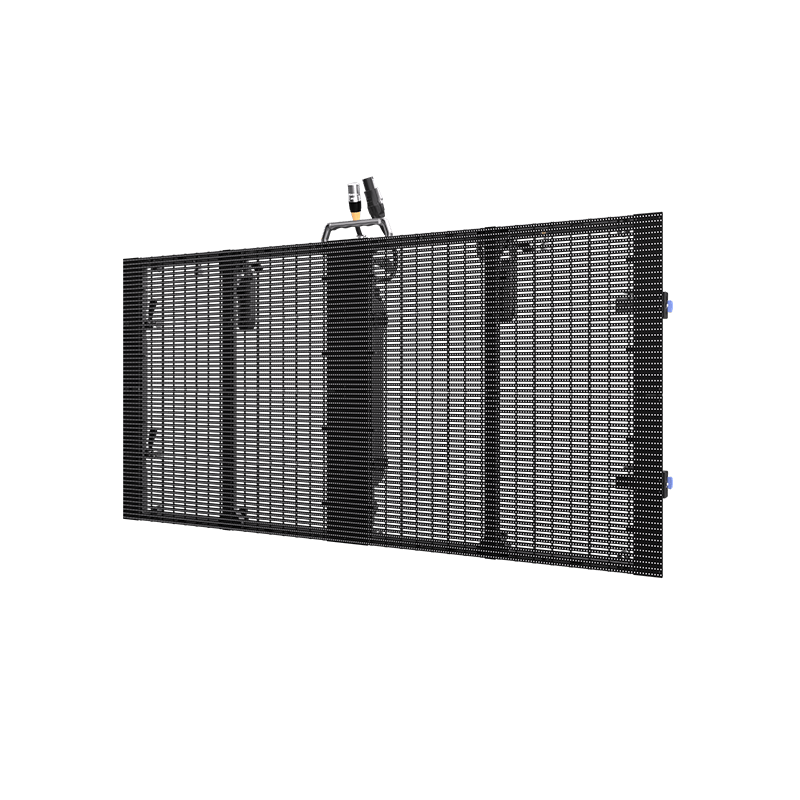

UT-390 | P3.9/7.8 | 1000x500MM

3.9-7.8 mm LED screen panel for indoor and outdoor use

Highly transparent LED screen for indoor and outdoor events

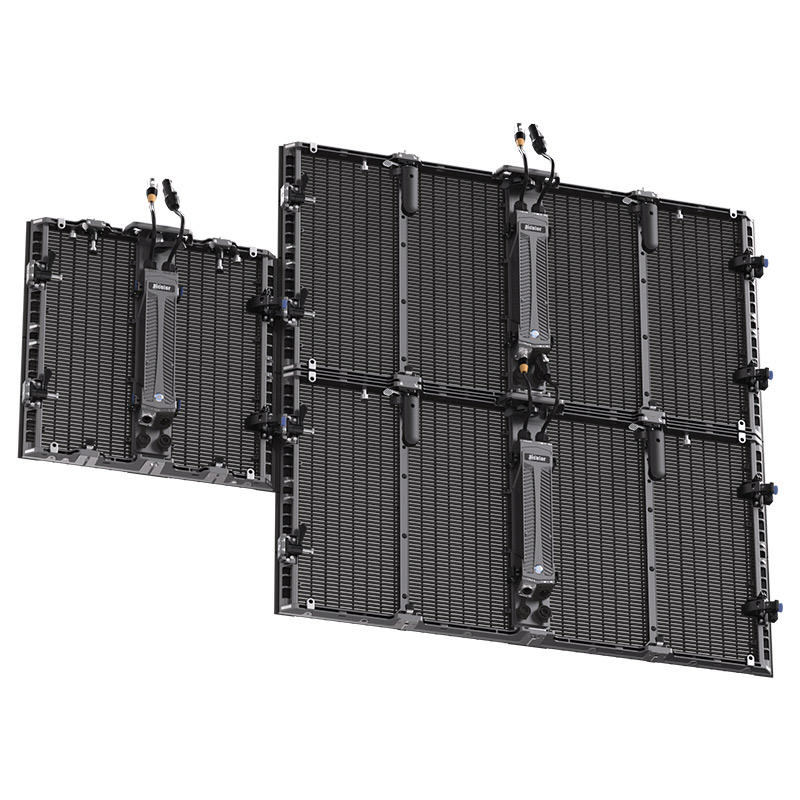

The UT-390 is a versatile, high-performance LED display (mesh) developed for many types of events. With a pixel pitch of 3.9–7.8 mm, it delivers a bright and detailed image, even in challenging environments. The display’s brightness can be adjusted up to 3500 nits, making it equally suitable for indoor and outdoor use.

The lightweight and thin cabinet design (only 7.7 kg and 76 mm deep) makes the display easy to handle and install – the UT-390 is designed for quick assembly and disassembly.

The screen has high reliability, IP65 weather protection rating, and front and rear service access. With a high refresh rate of ≥7680 Hz and 16-bit grayscale, a smooth and flicker-free image is ensured, suitable for both live audiences and camera-captured production.

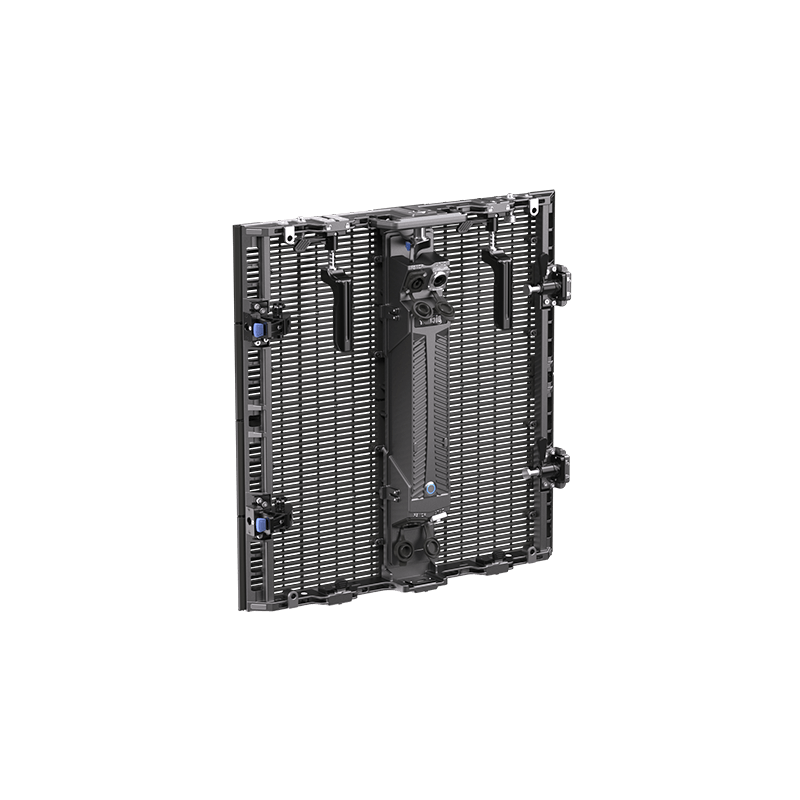

Availability: 300 square meters (1000x500mm), 30 square meters (500x500mm)

UT-390 P3.9/7.8 Specifications

Optical

Pixel Pitch: 3.91 mm horizontally, 7.81 mm vertically
Pixel density: 32 768 px/m2
Pixel resolution: 256×64
Brightness: 3500nits
Viewing angle: 140° H | 140° V
Refresh rate: 7 680 Hz
Material: Die-cast aluminum
Dimensions: 1000x500x76 mm
Weight: 15KG/M²
IP rating: IP65
Control unit: NovaStar
Receiving card: NovaStar A8S-N
Data connection: EtherCON
Power supply: AC 100-240V 50/60 Hz
Maximum power consumption: 360 W/m²
Average power consumption: 120 W/m²

Project information

Start your project

We can help you design custom solutions for LED video wall, display and screen rental or installation in any application. Whatever the size, complexity, or type of installation, we will find the solution that meets your needs.
