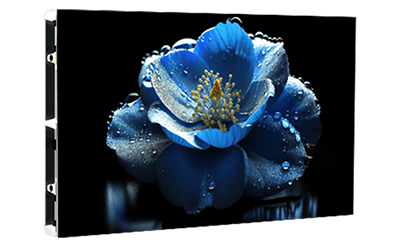

ON-COB Series

0.9 – 1.5mm LED video display for indoor use

Trefyr

LED video display solutions for retail and corporate spaces

ON-COB Series is a high-resolution LED display for indoor installations that combines the latest COB (Chip on Board) technology with high brightness and outstanding color reproduction. It is well suited for stores, conference rooms, and other corporate environments where image quality, reliability, and long service life are crucial.

The modular design makes it easy to build both small and large screens without compromise, and thanks to the panels 16:9 format, it is easy to adapt and mirror content in standard resolutions – without any technical knowledge.

The advanced COB technology also offers high contrast, easy cleaning, and extra resistance to shocks and dust, resulting in sharp, vivid images in all lighting conditions.

View completed LED wall packages (ON-COB).

Functionality

High image quality

Up to 3,840 Hz refresh rate delivers sharp, lifelike colors and smooth transitions.

Slim profile

Only 39.5 mm deep, lightweight and easy to install, including LED modules and accompanying cables.

Multiple installation options

Can be mounted on a wall for a sleek look, hung from the ceiling for open areas, or built freestanding.

Easy installation and service

Magnetic module connection for quick installation and easy service from the front.

ON-COB Specifications

Optical

Pixel Pitch: 0.93mm | 1.25mm | 1.56mm
Type of LED: Flip-chip COB LED
Pixel resolution: 640×360 | 480×270 | 384×216
Brightness (nit): 600 nit
Grayscale (bit): 13 bit
Contrast ratio: 10 000:1
Viewing angle: 160° H | 160° W
Refresh rate (Hz): 3 840 Hz
Material: Die-cast aluminum
Dimensions: 600×337.5×39.5 mm
Weight: 4 kg / panel
Service: Front
IP rating: IP40/IP21
Control unit: NovaStar
Receiving card: NovaStar
Data connection: Ethernet
Power Consumption (max): 350W / sqm
Power Consumption (avg): 117W / sqm
CCC, CE, CB, ROHS, FCC, ETL, PSE, CQC
2 year
ON COB LED från Trefyr

Project information

Start your project

We can help you design custom solutions for LED video wall, display and screen rental or installation in any application. Whatever the size, complexity, or type of installation, we will find the solution that meets your needs.
